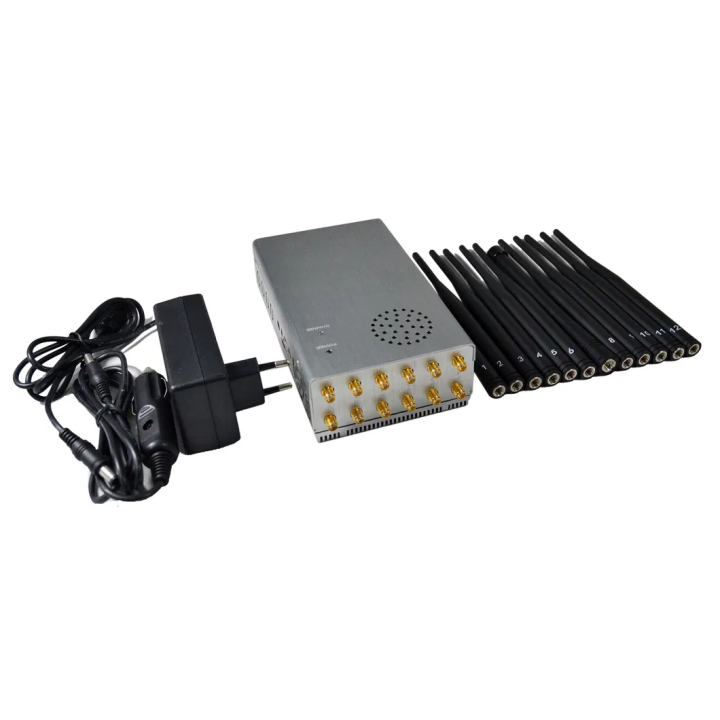

12-Antenna RF Jammer for Cellphone, WiFi & GPS Signals | 8.4W

12-Antenna RF Jammer for Cellphone, WiFi & GPS Signals | 8.4W

12-Antenna RF Jammer for Cellphone, WiFi & GPS Signals | 8.4W is an RF jammer designed to emit RF energy in defined, model-dependent wireless frequency bands. This 12-band portable cellphone jammer and WiFi jammer with GPS-capable channel options, 8.4W rated RF output and independently switchable antenna channels. It combines portable 12-channel architecture and frequency-selective controls. Depending on the ordered band plan it can be classified as a wireless signal jammer, cellphone jammer or WiFi jammer when those specific bands are present; the applicable frequencies must be checked on the supplied unit.

Product Features

• Channel selection: 12 external antennas with separate DIP switches for the configured RF bands
• Signal categories: 2G–5G cellular, WiFi 2.4/5.8GHz, GPS and optional LoJack allocations
• Construction: Dual cooling fans and an aluminum heatsink in a portable enclosure

Technical Specifications

• Rated RF output: 8.4W total (0.7W per band)
• Listed test range: 2–25 m (6.6–82.0 ft) (supplier estimate, not a fixed result)
• Battery: 10000mAh rechargeable
• Battery working time: 2–3 hours; approximately 6 hours to charge
• Main-unit dimensions: 331 × 93 × 46 mm (13.0 × 3.7 × 1.8 in) (without antennas)
• Net weight: 1500 g (3.3 lb)
• Power / charging: AC 100–240V to DC 12V; 12V vehicle power
• RF coverage: US/EU band allocations differ; examples include 617–698MHz 5G, 1560–1610MHz GPS L1 and 5125–5850MHz WiFi.

Applications and Limitations

The RF jammer specifications support comparisons of frequency-plan coverage, enclosure design and transmitter ratings in lawful, shielded RF labs. Applications are limited to legally authorized RF testing; this is not a consumer network-privacy or safety solution. Cellphone jammer, WiFi jammer and GPS jammer performance depends on the variant, receiver and surroundings; a listed test distance is not a guaranteed blocking radius.

Installation and Evaluation

Review the supplied frequency-channel labels, antenna arrangement, connector specifications and power rating for the 12-Antenna RF Jammer for Cellphone, WiFi & GPS Signals. Conduct any powered evaluation exclusively within a legally authorized, RF-screened facility. Follow the manufacturer documentation for hardware inspection and safe storage; do not operate on public radio frequencies.

Package Information

Host unit, 12 antennas, AC charger, car charger and nylon carrying case.

Regulatory Notice

RF signal jammers may interfere with emergency and licensed communications. In the United States, their marketing, sale, importation and operation are generally prohibited except for narrow statutory exemptions; check applicable regulations.
